Sr.No. |
Lamp Description |
Wattage |
Available Voltages |
Lux Level @ 1 meter |
|
1 |
4 LED SPOT LIGHT |
1 W X 4 LED |
5.2 W |
24 V/110 V AC/ 230 V AC |
1850 LUX |
2 |
6 LED SPOT LIGHT |
1 W X 6 LED |
7.2. W |
24 V/110 V AC/ 230 V AC |
2450 LUX |
3 |
8 LED SPOT LIGHT IP65 |
1 W X 8 LED |
9.6 W |
24 V/110 V AC/ 230 V AC |
4700 LUX |
4 |
12 LED SPOT LIGHT IP65 |
1 W X 12 LED |
14.4 W |
24 V/110 V AC/ 230 V AC |
5400 LUX |
5 |
4 LED FLEXIBLE SPOT LIGHT |
1 W X 4 LED |
5.2 W |
24 V/110 V AC/ 230 V AC |
1850 LUX |
6 |
6 LED FLEXIBLE SPOT LIGHT |
1 W X 6 LED |
7.2. W |
24 V/110 V AC/ 230 V AC |
2450 LUX |
7 |
4 LED ARM SPOT LIGHT |
1 W X 4 LED |
5.2 W |
24 V/110 V AC/ 230 V AC |
1850 LUX |
8 |
6 LED ARM SPOT LIGHT |
1 W X 6 LED |
7.2. W |
24 V/110 V AC/ 230 V AC |
2450 LUX |
9 |
8 LED ARM SPOT LIGHT (IP65) |
1 W X 8 LED |
9.6W |
24 V/110 V AC/ 230 V AC |
4700 LUX |
10 |
12 LED ARM SPOT LIGHT (IP65) |
1 W X 12 LED |
14.4 W |
24 V/110 V AC/ 230 V AC |
5400 LUX |
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
4.8 W |
NUMBER OF LEDS |
4 |
LUMENS |
656 LUMENS (164 LM/LED) |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL |
1850 LUX @ 1 METER. |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING |
OPTIONAL MOUNTING |
ON/OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITH CLEAR GLASS. |
PROTECTION |
HIGH DEGREE OF PROTECTION AGAINST DUST AND IS SPLASH PROOF. |
STAND |
18" FLEXIBLE PIPE LENGTH. |
FEATURES
- 40,000-hour maintenance-free LED operation.
- High-resistance coating against heat, wear and corrosion.
- Low voltage power lamp for cost saving energy efficiency.
- LEDs are long lasting and produce no heat.
- Operating temperature range of 100C to 450C.
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.

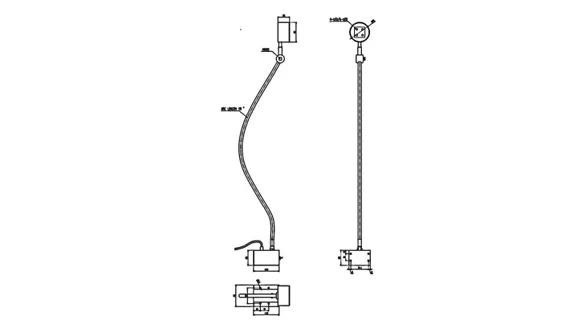

DIMENTIONAL DRAWING
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
7.2W |
NUMBER OF LEDS |
6 |
LUMENS |
984 LUMENS (164 LM/LED) |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL |
2450 LUX @ 1 METER |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING, |
OPTIONAL MOUNTING |
ON/OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITHCLEAR GLASS. |
PROTECTION |
HIGH DEGREE OF PROTECTION AGAINST DUST AND IS SPLASH PROOF. |
STAND |
18" FLEXIBLE PIPE LENGTH. |
FEATURES
- 40,000-hour maintenance-free LED operation.
- High-resistance coating against heat, wear and corrosion.
- Low voltage power lamp for cost saving energy efficiency.
- LEDs are long lasting and produce no heat.
- Operating temperature range of 100C to 450C.
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.

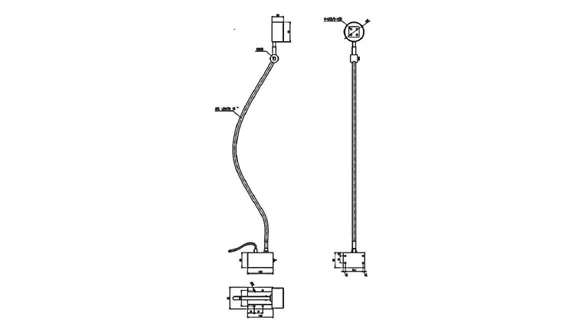

DIMENTIONAL DRAWING
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
4.8W |
NUMBER OF LEDS |
4 |
LUMENS |
656 LUMENS (164 LM/LED) |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL |
1850 LUX @ 1 METER |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING, |
OPTIONAL MOUNTING |
ON/OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITH CLEAR GLASS. |
PROTECTION |
HIGH DEGREE OF PROTECTION AGAINST DUST AND IS SPLASH PROOF. |
STAND |
STURDY, VIBRATION AND SHOCK RESISTANT POWDER COATED 15" X 2 ARMS AND 12" X 3 ARMS ALUMINUM PIPE STAND. |
FEATURES
- 40,000-hour maintenance-free LED operation.
- High-resistance coating against heat, wear and corrosion.
- Low voltage power lamp for cost saving energy efficiency.
- LEDs are long lasting and produce no heat.
- Operating temperature range of 100C to 450C.
- LED color temperature of 6500K
- Customized Arm length available as per requirement
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.

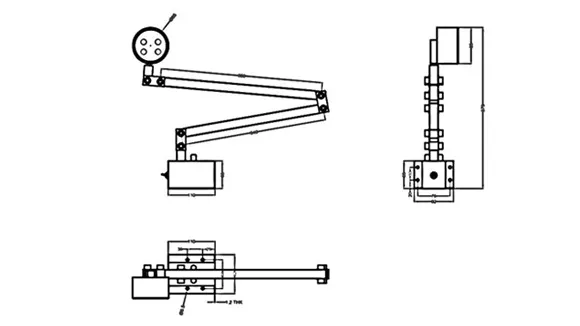

DIMENTIONAL DRAWING
SPECIFICATIONS |
|
LED MAKE |
OSRAM – GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
7.2W |
NUMBER OF LEDS |
6 |
LUMENS |
984 LUMENS (164 LM/LED) |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL |
2450 LUX @ 1 METER |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING. |
OPTIONAL MOUNTING |
ON/OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITHCLEAR GLASS. |
PROTECTION |
HIGH DEGREE OF PROTECTION AGAINST DUST AND IS SPLASH PROOF. |
STAND |
STURDY, VIBRATION AND SHOCK RESISTANT POWDER COATED 15" X 2 ARMS & 12" X 3 ARMS ALUMINUM PIPE STAND. |
FEATURES
- 3400 Horizontal movement & 1800 Vertical Movement
- 40,000-hour maintenance-free LED operation
- High-resistance coating against heat, Wear and corrosion.
- Low wattage lamp for cost saving energy efficiency with very bright light
- LEDs are long lasting and produce no heat
- Operating temperature range of 100C To 450C
- LED color temperature of 6500K.
- Customized Arm length available as per Requirement.
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.

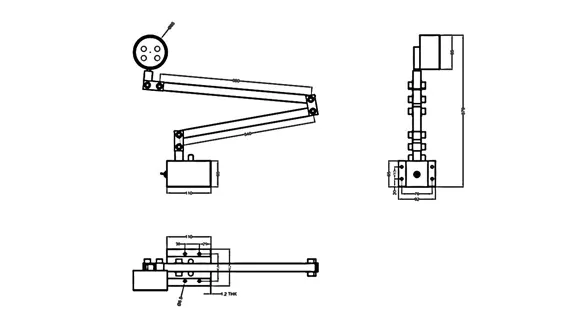

DIMENTIONAL DRAWING
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
14.4W |
NUMBER OF LEDS |
12 |
LUMENS |
1312 LUMENS (164 LM/LED) |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL |
4700 LUX @ 1 METERS |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING |
OPTIONAL MOUNTING |
ON/OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITH CLEAR POLYCARBONATE CASING. |
PROTECTION |
HIGH DEGREE OF PROTECTION AGAINST DUST AND IS SPLASH PROOF. |
STAND |
STURDY, VIBRATION AND SHOCK RESISTANT POWDER COATED, |
FEATURES
- 3400 Horizontal movement & 1800 Vertical Movement
- 40,000-hour maintenance-free LED operation
- High-resistance coating against heat, Wear and corrosion.
- Low wattage lamp for cost saving energy efficiency with very bright light
- LEDs are long lasting and produce no heat
- Operating temperature range of 100C To 450C
- LED color temperature of 6500K.
- Customized Arm length available as per Requirement.
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
14.4W |
NUMBER OF LEDS |
12 |
LUMENS |
1968 LUMENS (164 LM/LED) |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL |
5400 LUX @ 1 METERS |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING, |
OPTIONAL MOUNTING |
ON/OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITH CLEAR POLYCARBONATE CASING. |
PROTECTION |
HIGH DEGREE OF PROTECTION AGAINST DUST AND IS SPLASH PROOF. |
STAND |
STURDY, VIBRATION AND SHOCK RESISTANT POWDER COATED, |
FEATURES
- 3400 Horizontal movement & 1800 Vertical Movement
- 40,000-hour maintenance-free LED operation
- High-resistance coating against heat, Wear and corrosion.
- Low wattage lamp for cost saving energy efficiency with very bright light
- LEDs are long lasting and produce no heat
- Operating temperature range of 100C To 450C
- LED color temperature of 5700K.
- Customized Arm length available as per Requirement.
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
4.8 & 7.2W |
NUMBER OF LEDS |
4 & 6 |
LUMENS |
164 LM/W |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL 4 LED |
1850 LUX FOR 4 LED @ 1 METERS |
LUX LEVEL 6 LED |
2450 LUX FOR 6 LED @ 1 METERS |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING WITH ON/OFF SWITCH. |
OPT. MOUNTING |
ON/ OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITH CLEAR GLASS. |
PROTECTION |
HIGH DEGREE OF PROTECTION AGAINST DUST AND IS SPLASH PROOF. |
STAND |
BLACK POWER COATED M S BOX |
FEATURES
- 3400 Horizontal movement & 1800 Vertical Movement
- 40,000-hour maintenance-free LED operation
- High-resistance coating against heat, Wear and corrosion.
- Low wattage lamp for cost saving energy efficiency with very bright light
- LEDs are long lasting and produce no heat
- Operating temperature range of 100C To 450C
- LED color temperature of 6500K.
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.

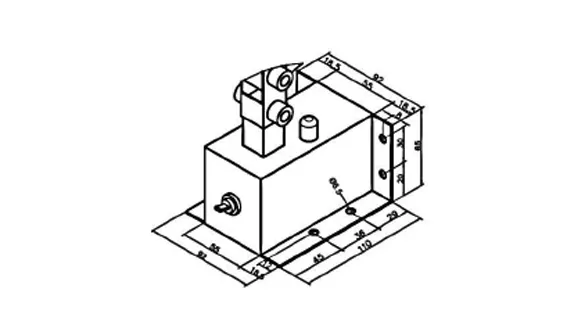

DIMENTIONAL DRAWING
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
9.6W & 14.4W |
NUMBER OF LEDS |
8 & 12 |
LUMENS |
164 LM/W |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUX LEVEL 8 LED |
4700 LUX FOR 8 LED LAMP @ 1 METER DISTANCE. |
LUX LEVEL 12 LED |
5400 LUX FOR 12 LED LAMP @ 1 METER DISTANCE. |
EXPECTED LIFE |
40000HRS. |
MOUNTING |
HORIZONTAL/VERTICAL MOUNTING |
OPT. MOUNTING |
ON/ OFF MAGNET OPTIONAL. |
ENCLOSER |
BLACK NYLON 66 GLASS FILLED BOX WITH CLEAR POLYCARBONATE CASING. |
PROTECTION |
IP65 |
STAND |
BLACK NYLON 66 GLASS FILLED WITH ADJESTABLE PIVOT |
FEATURES
- 3400 Horizontal movement & 1800 Vertical Movement
- 40,000-hour maintenance-free LED operation
- High-resistance coating against heat, Wear and corrosion.
- Low wattage lamp for cost saving energy efficiency with very bright light
- LEDs are long lasting and produce no heat
- Operating temperature range of 100C To 450C
- LED color temperature of 6500K.
APPLICATIONS
This durable machine light has a high degree of protection against dust and is splash proof, meaning it can be used even in harsh industrial conditions. The machine light is also resistance to lubricants and oils. As such, it makes an ideal lamp for when precise inspection and detailed work is required in specialist environments.
