PATANKAR INDUSTRIES, pioneers in the field of Industrial LED lamps, offer a complete range of glare free, long lasting and energy efficient machine lamps. Designed and manufactured to meet the industry standards, these lamps find wide application in Automobile, Engineering, Process, Electrical, lot of other industries.
FEATURES
- Sleek appearance in design & best in utility
- Highly efficient constant current LED drivers
- No UV or IR radiation. Green & Environment Protection.
- Heat resistant & shock proof & easily mountable
- Ideal for temperature fluctuating situations
- Stringently checked on various criterion of performance
- High quality integrated chip constant current drive circuit
SPECIFICATIONS |
|
LED MAKE OSRAM – GW PSLT33 |
|
LED WATTAGE |
1W |
LAMP WATTAGE |
28.8W |
NUMBER OF LED |
24 |
INPUT VOLTAGE |
24VDC/230VAC |
LUMENS 164 lm/W |
|
EXPECTED LIFE |
40000hrs. |
MOUNTING |
Horizontal Movement, Sturdy Aluminum Pipe Stand Gray powder coated. (NOT TO BE MOUNTED VERTICALY) |
ENCLOSER |
MS Powder Coated |
STAND |
Sturdy, vibration and shock resistant powder |
FEATURES
- 450 LENS for better illumination
- 1800 Horizontal movement.
- 40,000 hour maintenance-free LED operation.
- High-resistance coating against heat, wear and corrosion

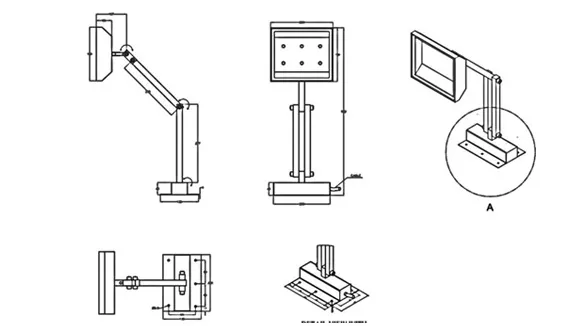

DIMENTIONAL DRAWING
